Eco – Folding Arm Awnings Colours
Product: Awnings
Type: Folding Arm Awnings
Fabric/Material: Canvas

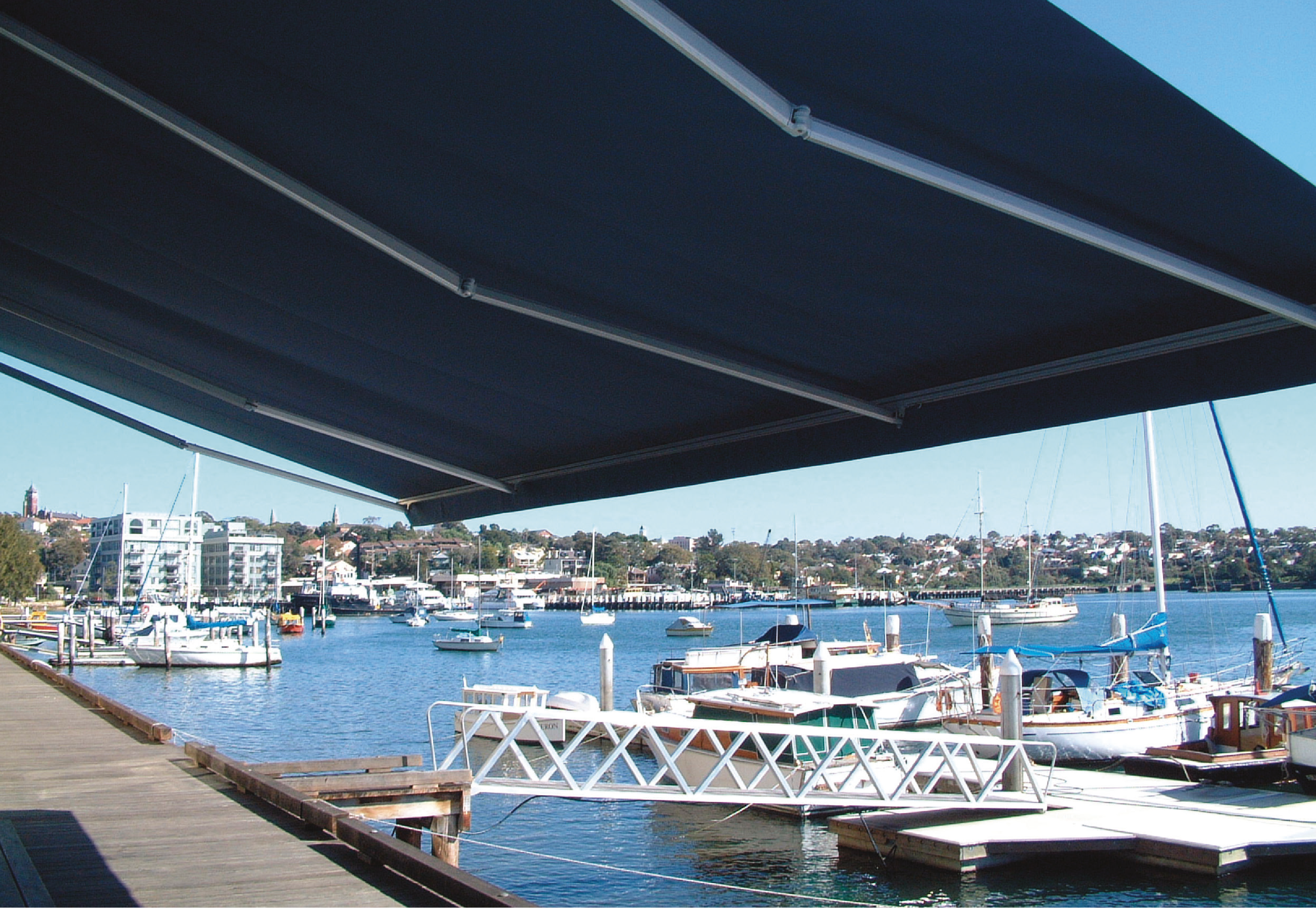

The Eco is a versatile, German-designed system offering reliable performance and manual or motorised operation where the mechanism and fabric bundle are not enclosed.
Description
Features
Specifications
Description

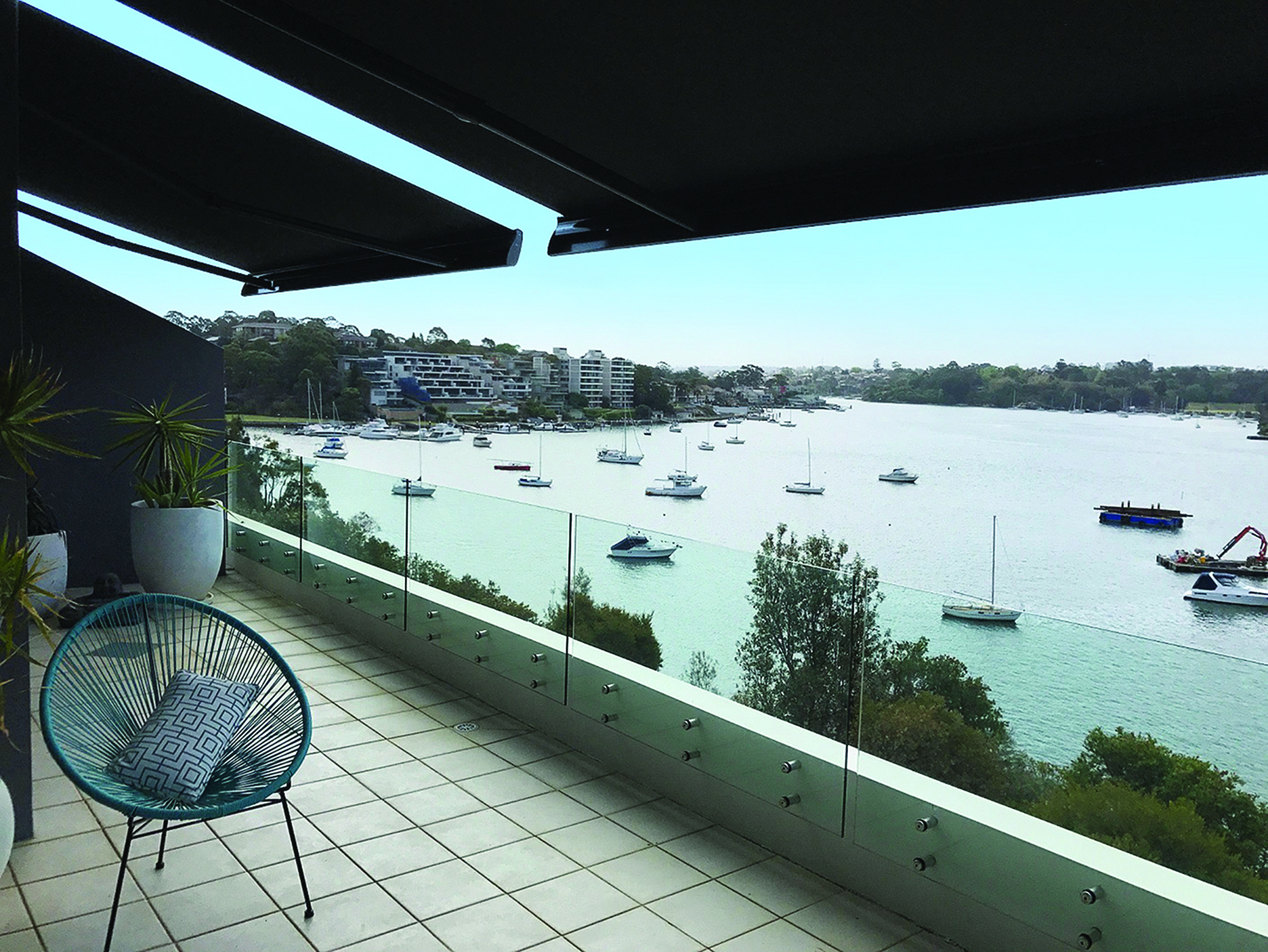

Eco is the perfect choice for customers looking for premium quality at an affordable price. It is ideal for smaller spaces such as courtyards, balconies or a compact patio. It has a slimline, open roll design, complementing your space perfectly while offering dependable shade and UV protection.
This is an affordable awning that still prioritises quality and comfort, making it the perfect choice for customers looking to find good coverage without breaking the bank.
Features
- Great sun and light rain protection
- Either crank or motorised We recommend motorisation as this style awning.
- Folding arm awnings should be retracted when wind speed are excessive of 30km
- Various Bracket options: (Rafter, Universal Bracket & Top mount, Bracket Detail Drawing)
- It is normal for there to be a gap between the back of the awning & the wall, when using rafter & top mount brackets there may be larger gaps due to the fixing of these brackets.
- Acrylic is the only fabric available for folding arm awnings due to its strength & lightweight properties
- Folding arm awning skins/covers are welded on the joins and side hems and sawn on the top and bottom pockets.
- Standard frame colours
Specifications
- Rain hood & fabric tray available as an option.
- 40 x 40 x 2 mm console tube; galvanised, epoxy undercoated & powder-coated.
- The pitch can be adjusted between 5-35 degrees to be perfect for any requirement.
- Max: 5500mm Width; 3000mm Projection.
- Projection: 1500mm-3000mm
- Min: 2000mm Width; 1500mm Projection.
- Dimensions: When closed, 215mm high and 130mm deep. Please note that the crank eye will protrude 65mm from the cassette when manual operation is chosen.
- Frame colour: Available in three different colours.
- Operation: Motorised or manual (Gear) operation. We recommend motorisation as this style awning.
- Arms: Secuflex 50 (Tensioned springs with twin PVC coated cables).
- Arm pitch: Between 5 degrees & 35 degrees.
- Brackets: Universal fit brackets (Integrated face fix and top fix design) are supplied as standard – Fascia brackets available at additional cost.
- Fascia/Rafter brackets: Available in 0,12,18, 25, 32 degrees.
- Motorisation: including manual override and motion sensor for added safety and versatility.
- Valance: Optional as included (Straight or scalloped).
