Stratos III – Colours
Product: Awnings
Type: Folding Arm Awnings
Fabric/Material: Canvas
Stratos III is a premium solution for covering larger areas, providing a stronger and more durable option.
Description
Features
Specifications
Description

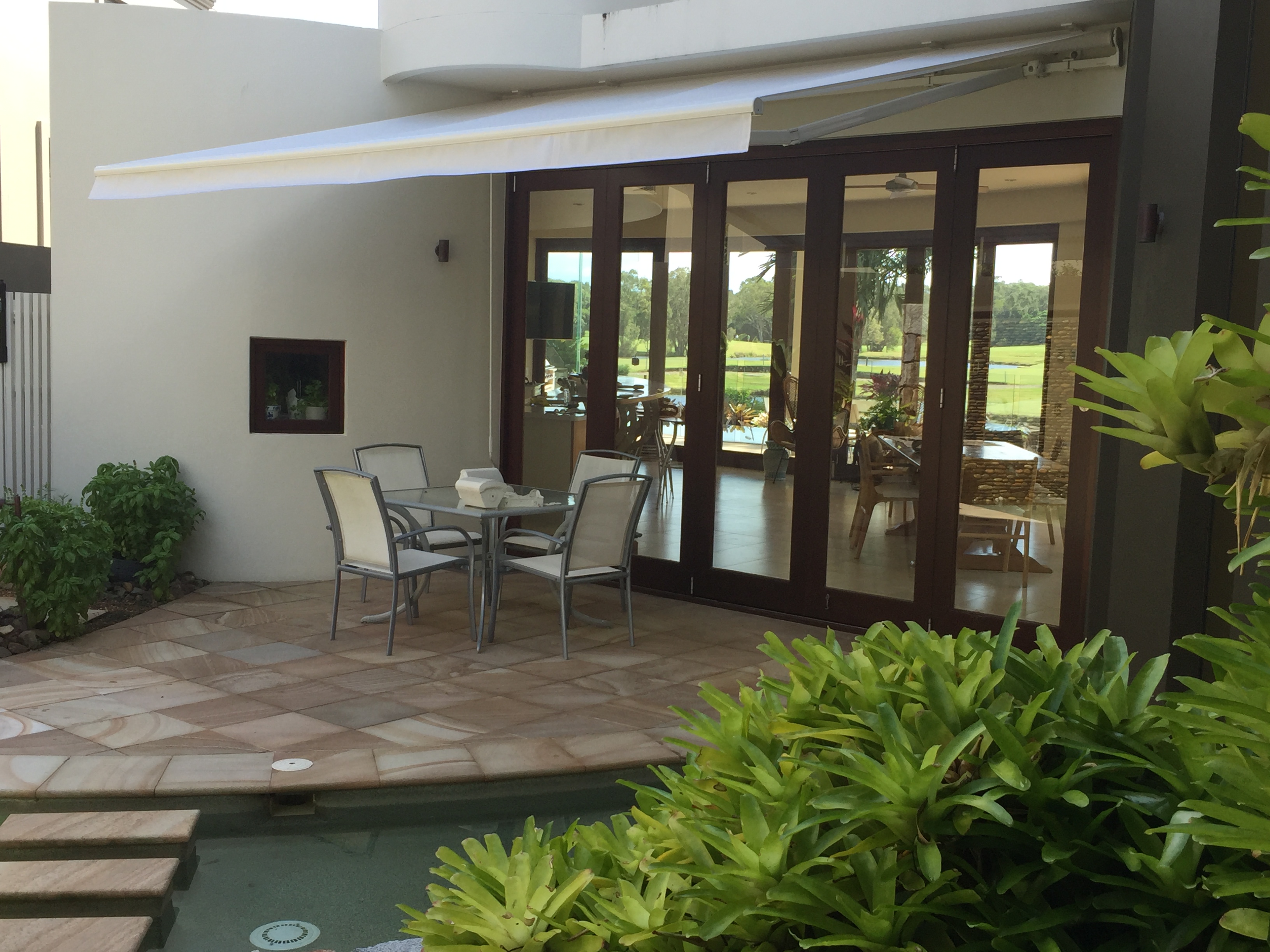

The Stratos III is a sleek, fully retractable, enclosed awning, that protects itself from dirt and corrosion, blends effortlessly with any home or shopfront, and offers motorised operation. Control options include manual operation via a crank wind handle, or motorisation that will include manual override and motion sensor for added safety and versatility.
Features
- Seamless integration
Extend your living space with shade and protection. - Flexible control
Manual, motorised or smart home automation options are all available. - Cassette protection
Protects the fabric and mechanisms when the awning is retracted. - Elegant design
Sleek, slim lines and modern finishes to have your space looking elegant and stylish. - Premium durability
Made to last and function as new for years to come, giving you peace of mind.
Rafter brackets are used when the awning needs to be fixed directly to the roof rafters or exposed rafter tails. This isoften the preferred option when the fascia board alone is not strong enough to carry the awning loads. The bracketstransfer the weight and wind forces directly into the house structure.
Fascia brackets are used when the awning is mounted to the fascia line and there is adequate structural supportbehind the fascia. They are commonly used where a gutter or roof overhang prevents a standard wall mount andallow the awning to sit out in front of the fascia.
Both options can be used when there is not enough brick or solid wall to get the required head height for the awning.
Specifications
- Rain hood & fabric tray included as standard.
- 40 x 40 x 2 mm console tube; galvanised, epoxy undercoated & powder-coated.
- The pitch can be adjusted between 5-45 degrees to be perfect for any requirement.
- Max: 5500mm Width; 3500mm Projection.
- Projection: 2000mm, 2500mm, 3000m, 3500mm.
- Min: 2420mm Width; 2000mm Projection.
- Dimensions: When closed, 245mm high and 195mm deep. Please note that the crank eye will protrude 65mm from the cassette when manual operation is chosen.
- Frame colour: Available in six different colours.
- Operation: Manual operation via a crank wind handle or motorisation that will include manual override and motion sensor for added safety and versatility.
- Arms: Secuflex 70II (Tensioned springs with Stainless Steel cables).
- Arm pitch: Between 5 degrees & 52 degrees.
- Brackets: Universal fit brackets (Integrated face fix and top fix design) are supplied as standard – Fascia brackets available at additional cost.
- Fascia/Rafter brackets: Available in 0,12,18, 25, 32 degrees.
- Motorisation: Will include manual override and Motion Sensor available.
- Valance: Optional (Straight or scalloped).
