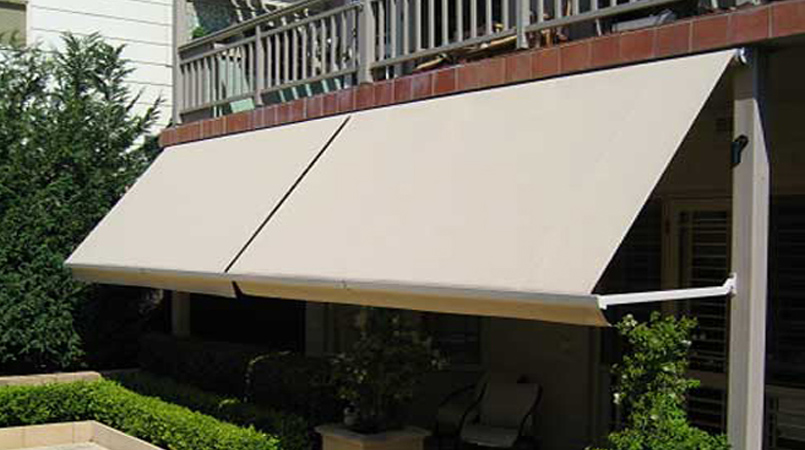

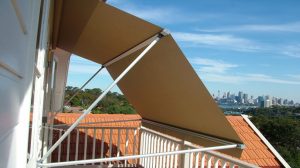

Pivot Arm Awning
Pivot Arm Awning is a heavy duty awning suitable for high wind areas and wide window applications.It spans widths up to 4200mm and area coverage of 16.8 square metres.
Available in motorized option, which can be coupled with sun and wind sensor for optimum control.
- Suitable for window and doors (with slide rails option)
- Comes complete with hood in White, Ebony & Precious Silver Pearl finish
- Front rail colours are White, Ebony & Precious Silver Pearl finish
- Arm & slide rail come in Clear Anodised (Silver in colour)
- Widths up to 4200mm
- Arm size / projection 500mm – 1500mm in 100mm increments
- Slide rail size / lengths 1000mm – 2000mm in 500mm increments
- Available with ether gear/crank or motorized operation which can be coupled with sun & wind sensors for optimum control.
- When used with the optional slide rail (additional cost) this enables you to increase the height of the front rail, so giving a better height clearance (please note that this operation has to be done manually)
- Acrylic, Mesh, Canvas

Available colours for Gear Operated Pivot
Acrylic (Docril)
(see all samples and specifications)
Mesh (Vistaweave 95)
(see all samples and specifications)
Canvas (Barrington Colours)
(see all samples and specifications)
